HIOKI RM 3548 RESİSTANCE METER

HIOKI RM 3548 RESİSTANCE METER

Yüksek hassasiyetli Taşınabilir Direnç Ölçer, µΩ'den MΩ'ye kadar

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is intended primarily for use in testing and maintenance of large equipment, for example, measuring the winding and weld resistances in large motors.

Key Features

  • 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1 A max. testing current, 1A max. testing current
  • Measure from 0.0 µΩ (testing current 1 A) to 3.5 MΩ
  • Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
  • Smoothly capture temperature-rise test data using interval measurement
  • Portable design is ideal for maintenance and testing of large equipment

Portable resistance tester that’s ideal for low-resistance measurement and testing of large transformers and motors

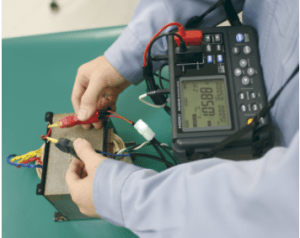

This resistance tester features a portable design that’s easy to use when performing maintenance work in the field. You can wear the instrument over your neck with the included strap, leaving both hands free to hold the clip-type leads while making measurements. The instrument can be powered by eight AA alkaline batteries for about 10 hours of measurement. (Operating time varies with measurement conditions.)

Reduce the effects of thermoelectromotive force with the offset voltage correction

Thermoelectromotive force refers to the potential difference that occurs at junctions between different metals (see figure). Specifically, the phenomenon occurs where measurement probes and measurement targets come into contact, and at connections between measuring instruments and measurement leads. The magnitude of this thermoelectromotive force varies with the temperature of the measurement environment, increasing as the temperature difference grows. The RM3548 includes an offset voltage correction function that applies the measurement current in both the positive and negative directions and then uses the resulting detected voltages to eliminate the effects of thermoelectromotive force.

Correct resistance values, which vary with temperature, to a reference temperature with the temperature correction function

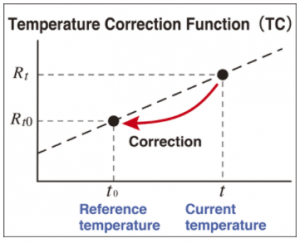

Temperature correction functions can convert readings to resistance values at a user-specified reference temperature and display the results, even for materials such as copper wire whose resistance varies with temperature. The RM3548’s temperature correction function converts the measured resistance value Rt at the current temperature t to the resistance value Rt0 at the reference temperature t0, as shown in the figure. The Temperature Sensor Z2002 (which comes with the RM3548) is used to perform temperature correction.

Resistance range

3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps

Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.

Testing current [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage 5.5 V DC max.
Temperature measurement -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)
Measurement speed Fixed
Display refresh rate Without OVC: approx. 100ms, With OVC: approx. 230ms
Functions

Temperature correction

Temperature conversion

Offset voltage compensation (OVC)

Comparator (ABS/REF%)

Length conversion

Judgment sound setting

Auto hold

Auto power save (APS)

Averaging

Panel store/panel load

USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)

Memory storage Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA
Dimensions and mass 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D mm, 770 g (27.2 oz)
Accessories

Clip type lead L2107 ×1,

Temperature sensor Z2002 ×1,

LR6 Alkaline battery ×8,

Instruction manual ×1,

USB Cable(A-to-mini B type) ×1,

Strap ×1,

Spare fuse ×1



Accessories

Clip type lead L2107 ×1,

Temperature sensor Z2002 ×1,

LR6 Alkaline battery ×8,

Instruction manual ×1,

USB Cable(A-to-mini B type) ×1,

Strap ×1,

Spare fuse ×1

OPTIONS

Four Terminal Lead 9453

Zero Adjustment Board 9454

Pin Type Lead 9465-10

Tip Pin 9465-90

Large Clip Type Lead 9467

Pin Type Lead 9772

Tip Pin 9772-90

LED Comparator Attachment L2105

Clip Type Lead L2107

Temperature Sensor Z2002

Carrying Case C1006
