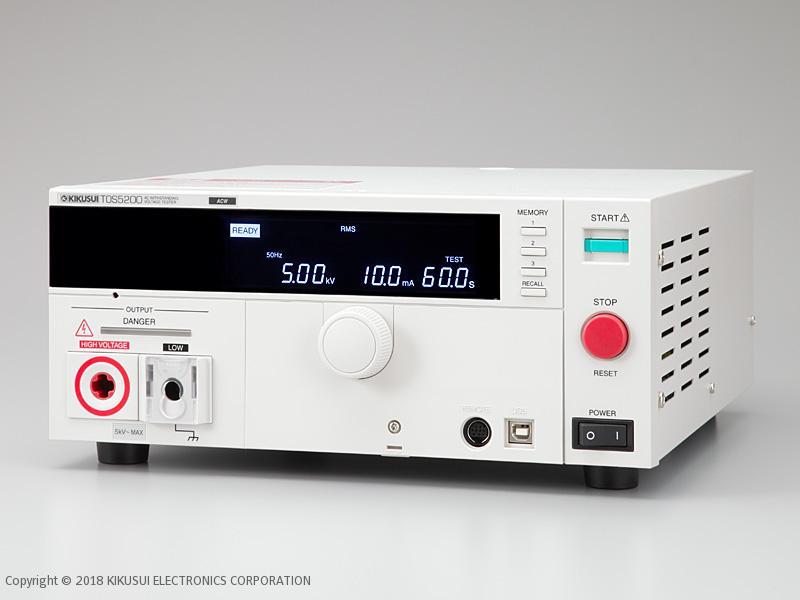

Teknik Özellikler |
|
Çıkış voltajı |
0.05V…5kV AC ayarlanabilir |
|
Çıkış Gücü |
500VA / 5kV, 100mA |
|
Çıkış Voltmetreleri |
|
Dijital |
Skala |
0.000kV…6.500kV |
|
Doğruluk |
±1.5% |
|
Ampermetre |
|
Dijital |
Doğruluk |
AC: 0.00mA…110mA ±(1.5% + 30μA) Üst limit kesme akımı |
|
Üst Limit Akım Aralığı |
0.1….110mA |
|
Alt Limit Akım Aralığı |
0.1….110mA/OFF |
|
Zamanlayıcı |
0.1 … 999 saniye |
|
Zamanlayıcı doğruluğu |
±(100ppm +20ms) |
|
PC arayüzü |
Usb,RS232C |
|
Çalışma Voltajı |
90V…250V (50/60Hz) |
|
Ebatlar |
320X132X350 mm |
|
Ağırlık |
14kg |
OPTIONS
TL31-TOS
Option(s) for Electrical Safety Testers. High-voltage test lead for TOS53XX, 1.5m (5kV Max.)
TL32-TOS
Option(s) for Electrical Safety Testers. High-voltage test lead for TOS53XX, 3m (5kV Max.)
HP01A-TOS
Option(s) for Electrical Safety Testers. High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
HP02A-TOS
Option(s) for Electrical Safety Testers. High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
RC01-TOS
Option(s) for Electrical Safety Testers. Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
RC02-TOS
Option(s) for Electrical Safety Testers. Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
DD-5P/9P
Option(s) for Electrical Safety Testers. Conversion cable(DIN to Mini DIN) for connecting the remote control box (RC01-TOS or RC02-TOS) or high-voltage test probe (HP01A-TOS or HP02A-TOS ) with TOS53XX
TU01-TOS
Option(s) for Electrical Safety Testers. The TU01-TOS is a terminal unit that converts the 25 pin SIGNAL I/O connector of the Kikusui TOS5300/ 5301/ 5302 Withstanding Voltage Tester to the 14 pin SIGNAL I/O connector of the TOS5050A/ 5051A. You can insert this unit between a controller and a TOS5300/ 5301/ 5302 to perform the same external control that you can perform on the TOS5050A/ 5051A.
PL02-TOS
Option(s) for Electrical Safety Testers. Warning light unit for only TOS9200/TOS9201
KRA4-TOS
Rack adapter (Inch size) *Applicable model name: TOS53XX
KRA200-TOS
Rack adapter (Metric size) *Applicable model name: TOS53XX
