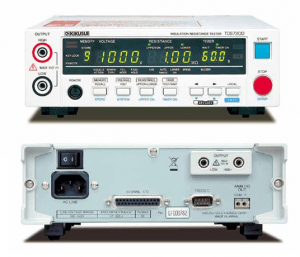

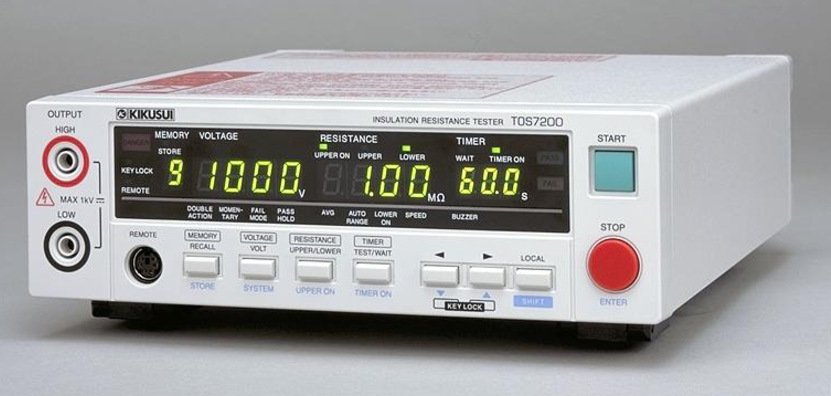

Kikusui TOS7200 DC delinme test Cıhazı

TOS7200 elektriksel güvenlik standartlarına uygun olarak elektronik cihazlar ve aksamları üzerinde DC delinme testleri için tasarlanmıştır 1kV DC İzolasyon test cihazıdır. TOS 7200 1kV DC’ye kadar ayarlanabilir test voltajına ve 5.000MOhm izolasyon direnci okuma özelliğine sahiptir.

TOS7200 elektriksel güvenlik standartlarına uygun olarak elektronik cihazlar ve aksamları üzerinde DC delinme testleri için tasarlanmıştır 1kV DC İzolasyon test cihazıdır. TOS 7200 1kV DC’ye kadar ayarlanabilir test voltajına ve  5.000MOhm  izolasyon direnci okuma özelliğine sahiptir.

Özellikleri:

• DC 1000V’a Kadar Ayarlanabilir Test Gerilimi
• 01 MOhm dan 5.000MOhm a Kadar İzolasyon Direnci Ölçüm Aralığı
• Zamanlayıcı Fonksiyonu
• Artış ve Düşüş Zamanı Kontrol Özelliği
• Otomatik Deşarj Fonksiyonu
• PASS/FAIL Özelliği
• Renkli Ekran
• RS232 Arayüzü, Signal I/O
• Japon Malı
• Provided with the discharge function
• Equipped with the window comparator
• Hold function (which holds the measured resistance at the end of testing while PASS judgment is being output)
• Provided with the timer function
• Rear output terminals
• Measured-value monitoring terminals
• Equipped with the panel memory (enabling 10 different settings to be stored)
• Equipped with the SIGNAL I/O connector and remote control terminal
• Equipped with the RS-232C interface as standard

  LINE UP

  Model	Specification
  TOS7200	Output voltage setting range: -25 to -1000V, Resistance measurement range: 0.01 M Ω to 5000 M Ω, Equipped with the SIGNAL I/O connector, remote control terminal and RS-232C interface as standard.

  SPECIFICATIONS

  Output section
  Output voltage range	-25 V to -1000 V
  	Resolution	1 V
  	Accuracy	±(1.5 % of setting + 2 V)
  Maximum rated load	1 W (1 000 V/1 mA)
  Maximum rated current	1 mA
  Output terminals	Output type	Floating
  	Isolation voltage	±1000 VDC
  Ripple	1000 V / under no load	2 Vp-p or less
  	Maximum rated load	10 Vp-p or less
  Short-circuiting current	12 mA or less
  Output rise time	50 ms or less (10 % to 90 %) [no load]
  Discharge function	Forced discharge at the end of test (discharge resistance: 25 kΩ)
  Voltmeter
  Measurement range	0 V to -1200 V
  Resolution	1 V
  Accuracy	±(1 % of reading +1 V)
  Resistance meter
  Measurement range	0.01 MΩ to 5000 MΩ (In the range of over 100 nA to a maximum rated current of 1 mA)
  Display	□.□□ MΩ R < 10.0 MΩ □□.□ MΩ 10.0MΩ ≤ R < 100.0MΩ □□□ MΩ 100.0MΩ ≤ R < 1000MΩ □□□□ MΩ 1000MΩ ≤ R ≤ 5000MΩ R = measured insulation resistance
  Accuracy	± (10 % of reading) 100 nA < i ≤ 200 nA ± (5 % of reading) 200 nA < i ≤ 1 µA ± (2 % of reading) 1 µA < i ≤ 1 mA i =measured output-voltage value/measured resistance value [In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
  Measurement range	The current measurement range is selectable between AUTO and FIX.
  	AUTO	Automatically changes the current measurement range according to the measured current value.
  	FIX	Fixes the current measurement range based on the output voltage set value and LOWER set value (in UPPER OFF status).
  Holding function	Holds the resistance value obtained at the end of testing while a PASS judgment is being output.
  Time
  Setting range for the test duration (TEST TIME)	0.5 s to 999 s (TIMER OFF function provided)
  Setting range for the wait time (WAIT TIME)	0.3 s to 10 s [TEST TIME > WAIT TIME]
  Accuracy	±(100 ppm + 20 ms)
  Environment
  Installation location	Indoors and at altitudes up to 2000 m
  Warranty range	Temperature	5 °C to 35 °C
  	Humidity	20 %rh to 80 %rh (no condensation)
  Operating range	Temperature	0 °C to 40 °C
  	Humidity	20 %rh to 80 %rh (no condensation)
  Storage range	Temperature	-20 °C to 70 °C
  	Humidity	90 %rh or less (no condensation)
  Nominal voltage range (allowable voltage range)	100 V to 240 V AC (85 V to 250 V AC)
  Power consumption At rated load	30 VA maximum
  Allowable frequency range	47 Hz to 63 Hz
  Insulation resistance	30 MΩ or more (500 V DC) [AC LINE to chassis]
  Hipot	1390 V AC for 2 seconds, 10 mA or less [AC LINE to chassis]
  Ground bond	25 A AC / 0.1 Ω or less
  Electromagnetic compatibility (EMC) *1	Conforms to the requirements of the following directive and standard. EMC Directive 2004/108/EC EN 61326-1 (Class A) EN 55011 (Class A, Group 1) EN 61000-3-2 EN 61000-3-3 Under following conditions 1.Used HV test lead wires TL08-TOS which is supplied. 2.No discharge occurs at outside of the tester. 3.Used the shielded cable which length is less than three meters when the SIGNAL I/O is used.
  Safety *1, *2	Conforms to the requirements of the following directive and standard. Low Voltage Directive 2006/95/EC EN 61010-1 Class I Pollution degree 2
  Dimensions (maximum)	215[8.46 inch]  W × 66[2.60 inch] (85[3.35 inch]) H × 230[9.06 inch] (260[10.24 inch]) D  mm
  Weight	Approx. 2 kg (Approx.4.41 lbs)
  Accessories	AC power cable 1 pc. TL08-TOS high-voltage test leadwires (1.5 m) 1 set Operation Manual 1 copy

  • *1: Only on models that have CE marking on the panel. Not applicable to custom order models.
  • *2: This instrument is a Class I equipment. Be sure to ground the protective conductor terminal of the instrument. The safety of the instrument is not guaranteed unless the instrument is grounded properly.
