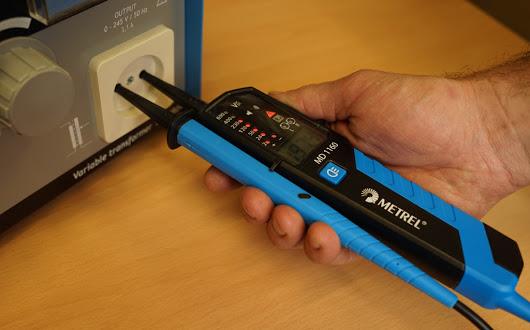

A two-pole voltage detector is a basic tool kit for electricians. High quality rubber construction make this the professional’s choice. Both models support Voltage measurement, Continuity measurement, Single pole test, Phase rotating field test and a torch function via a white LED for working in dark areas. The products are built in accordance to the latest voltage tester standard EN 61243-3:2014 and are GS approved by TÜV test lab.
-
AC, DC voltage testing;
-
Phase testing;
-
Rotary field testing;
-
Continuity testing.
-
Mid level electrical testing;
-
Mid level electronic fault finding;
-
Field servicing;
-
General purpose.
|
|
MD1160-LCD |
|
AC VOLTAGE |
|
Test Range |
0 V - 690 V |
|
Response Time |
<1s |
|
Frequency Range |
16 - 400 Hz |
|
DC VOLTAGE |
|
Test Range |
0 V - 690 V |
|
Response Time |
<1s |
|
CONTINUITY |
|
Indication |
Acoustical and LED indication |
|
Continuity test (Acoustic) |
0 - 500 kΩ +50% |
|
Test Current |
3.5 µA |
|
PHASE TESTING |
|
Phase Testing |
Single-Pole Phase testing |
|
Phase Sequence |
Two-Pole Phase
Sequence testing
|
|
Phase indication |
>100 V AC |
|
Display |
LCD display |
|
Tolerance |
0 V - 690 V ± (3% ± 5dgt) |
|
SAFETY & PROTECTION |
|
Overload Category |
CAT IV 600 V |
|
Compliant to standards |
IEC/EN 61243-3:2010,
DIN VDE 00411,
IEC 61010-1,
GS38
|
|
Protection degree |
IP64
For outdoor use:
Water jet and dust tight protection
|
|
Temperature range |
-15 ÷ 55 °C |
|
Power supply |
2 x 1,5 V Type AAA Micro |
|
DIMENSIONS |
|
Weight |
200 g |
|
Dimensions |
240 x 60 x 20 mm |
