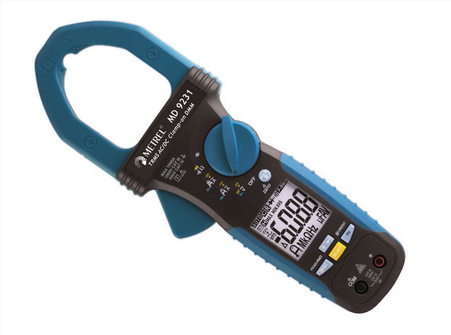

METREL MD 9231 AC/DC PENSAMPERMETRE

METREL MD-9231 son teknolojiye sahip, dayanıklı, geniş çene yapısına sahip, 1000A’e kadar TrueRMS AC/DC akım ölçebilen endüstriyel bir PensAmpermetredir.

Özelikler

• True RMS AC, DC ve DC+AC 1000A Akım Ölçümü
• True RMS AC,DC ve DC+AC 1000V Gerilim Ölçümü
• 51 mm Çene Açıklığı
• Otomatik Kademe
• Canlı iletkenin bulunması ve izlenmesi için elektromanyetik alanın temassız tespiti
• Temassız Gerilim Detektörü Özelliği
• Frekans Ölçümü
• Kapasite ölçümü
• Direnç Ölçümü
• Direnç Ölçümü
• Diod Testi
• Sesli Süreklilik Ölçümü
• 6000 Sayım, Arka aydınlatmalı Ekran
• Data Hold Özelliği, Min, Maks, Ortalama Ölçümleri
• 8kV’a Kadar Transient Koruma
• Şık Taşıma Çantası ile Birlikte
• CAT IV Koruma Sınıfı
• Avrupa Malı

• Function	Range	Accuracy
  DC Voltage	600.0 V ... 1000.0 V	±(0.8% of reading + 5 digits)
  AC Voltage (50 Hz ... 400 Hz)	600.0 V ... 1000.0 V	From ±(0.8% of reading + 5 digits) to ±(10% of reading + 5 digits)
  DC+AC Voltage (DC, 50 Hz ... 400 Hz)	600.0 V ... 1000.0 V	From ±(1.0% of reading + 7 digits) to ±(12% of reading + 7 digits)
  PEAK-rms (ACV & ACA)	Response: 80 ms to > 90%.
  CREST (Peak-Hold)	Accuracy: Add 250 digits to specified accuracy for changes > 5ms
  Audible Continuity Tester	Audible Threshold: At between 10 Ω and 250 Ω. Response time: 32 ms approx.
  Ohm	600.0 Ω, 6.000 kΩ, 60.00 kΩ	±(1.0% of reading + 5 digits)
  Capacitance	200.0 μF, 2500 μF	±(2.0% of reading + 4 digits)
  Diode Tester	2.000 V	±(1.5% of reading + 5 digits)
  AmpTipTM clamp-on DCA	00.00 A … 60.00 A	From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits)
  AmpTipTM clamp-on ACA (40 Hz ... 400 Hz)	00.00 A … 60.00 A	From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits)
  AmpTipTM clamp-on DC+ACA (DC, 40 Hz ... 400 Hz)	00.00 A … 60,00 A	From ±(2.0% of reading + 7 digits) to ±(3.0% of reading + 7 digits)
  Regular Clamp-on DCA	60.00 A … 1000 A	±(1.8% of reading + 5 digits)
  Regular Clamp-on ACA (40 Hz ... 400 Hz)	60.00 A … 1000 A	From ±(1.8% of reading + 5 digits) to ±(2.2% of reading + 5 digits)
  Regular Clamp-on DC+ACA (DC, 40 Hz ... 400 Hz)	60.00 A … 1000 A	From ±(2.2% of reading + 7 digits) to ±(2.5% of reading + 7 digits)
  Hz Line Level Frequency	5.00 Hz … 999.9 Hz	±(1.0% of reading + 5 digits)
  Non-Contact EF-Detection	20 V … 440 V	Tolerance: 10 V … 1000 V
  Detection Frequency	50/60Hz
  Transient Protection	8.0 kV (1.2/50 µs surge)
  Overload Protections	Current & Hz functions via jaws: 1000 ADC/AAC rms at < 400 Hz Other functions via terminals: 1000 VDC/VAC rms
  Power Supply	1.5 V AAA Size battery X 2
  Power Consumption	Typical 13 mA for Current functions
  Dimension (L x W x H)	258 x 94 x 44 mm
  Weight	392 g
  Jaw opening & Conductor diameter	51 mm max

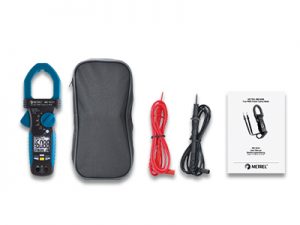

MD 9231 Standard set

• MD 9231 Current clamp
• Test lead, 2 pcs
• Battery, 2 pcs
• Pouch, 1 pcs
• User manual
