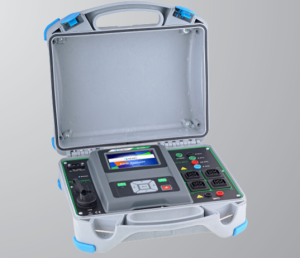

Method
|
Additional info
|
Measurement range
|
Uncertainty
|
|
Earth resistance 2, 3, 4 -pole
|
Open-terminal test voltage 20 or 40 VAC
|
|
|
|
Short-circuit test current > 220 mA
|
|
|
|
Test frequency
|
|
|
|
55 Hz…329 Hz
|
0.010 Ω … 19.99 kΩ
|
±(3 % of reading + 3 digits)
|
|
659 Hz … 2.63 kHz
|
0.00 Ω … 1.999 kΩ
|
±(5 % of reading + 3 digits)
|
|
3.29 kHz … 15 kHz
|
0.00 Ω … 199.9 Ω
|
±(8 % of reading + 3 digits)
|
|
Selective earth resistance with iron clamp
|
Open-terminal test voltage 40 VAC
|
|
|
|
Short-circuit test current > 220 mA
|
|
|
|
Test frequency
|
|
|
|
55 Hz … 329 Hz
|
0.010 Ω … 19.99 kΩ
|
±(8 % of reading + 3 digits)
|
|
659 Hz … 1.50 kHz
|
0.00 Ω … 1.999 kΩ
|
|
|
Selective earth resistance of pylons with flex clamp
|
Open-terminal test voltage 40 VAC
|
|
|
|
Short-circuit test current > 220 mA
|
|
|
|
Test frequency
|
|
|
|
55 Hz…329 Hz
|
0.010 Ω … 19.99 kΩ
|
±(8 % of reading + 3 digits)
|
|
659 Hz … 1.50 kHz
|
0.00 Ω … 1.999 kΩ
|
|
|
Passive mode
|
0.00 Ω … 19.99 kΩ
|
|
|
Earth resistance with two iron clamps
|
Test frequency 82 Hz ... 329 Hz
|
0.00 Ω … 9.99 Ω
|
±(5% of reading + 2 digits)
|
|
|
10.0 Ω … 49.9 Ω
|
±(10 % of reading + 2 digits)
|
|
|
50.0 Ω … 100 Ω
|
±(20 % of reading)
|
|
Specific earth resistance ro Wenner and Schlumberger method
|
Open-terminal test voltage 20 or 40 V AC
|
0.00 Ωm … 19.99 kΩm
|
calculated value (consider uncertainty of 4 – pole measurement)
|
|
Short-circuit test current >220 mA
|
|
|
|
Test frequency 164 Hz
|
|
|
|
Earth Potential
|
Open-terminal test voltage 40 V AC
|
0.0 mV … 49.99 V
|
calculated value (consider uncertainty of 3 – pole measurement)
|
|
Short-circuit test current >220 mA
|
|
|
|
Test frequency 55 ÷ 329 Hz
|
|
|
|
HF-Earth Resistance 3 pole
|
Open-terminal test voltage 40 VAC
|
0.00 Ω … 19.9 Ω
|
±(3 % of reading + 2 digits)
|
|
Short-circuit test current >40 mA
|
20.0 Ω … 299 Ω
|
|
|
Test frequency 25.000 Hz
|
|
|
|
Impulse Earth Resistance
|
Open-terminal test voltage ~120 V peak
|
0.0 Ω … 199 Ω
|
±(8 % of reading + 8 digits)
|
|
Short-circuit test current ~6 A peak
|
|
|
|
Impulse waveform 10 / 350 µs
|
|
|
|
DC Resistance RLOW
|
Test current 200 mA
|
0.00 Ω … 1.99 kΩ
|
±(2 % of reading + 2 digits)
|
|
DC Resistance CONT
|
Test current 7 mA
|
0.00 Ω … 19.9 kΩ
|
±(3 % of reading + 2 digits)
|
|
AC Impedance
|
Test frequency 55 Hz … 15 kHz
|
0.00 Ω … 19.99 kΩ
|
±(3 % of reading + 2 digits)
|
|
Current RMS (Iron Clamp)
|
Nominal frequency 45 Hz …1.5 kHz
|
1.0 mA …7.99 A
|
±(2 % of reading + 3 digits)
|
|
Current RMS (Flex Clamp)
|
Nominal frequency 45 Hz …1.5 kHz
|
10 mA … 49.9 A
|
±(8 % of reading + 3 digits)
|
