Raytech Digital Micro ohm meter, Micro Junior 2, was designed for high degree of accuracy to measure very low resistances. It is battery operated with a lithium-ion battery that allows over 2000 test measurements with 10A output without recharging.
The MJ-2 is a high precision, fully automatic, microprocessor based system. This system is designed for highly accurate readings on-site with laboratory precision.
The MJ-2 applies a preset current level, selected by the user. The results of the test are displayed within a few seconds automatically. The results are reported on the easy to read liquid crystal display and can be stored or printed out.

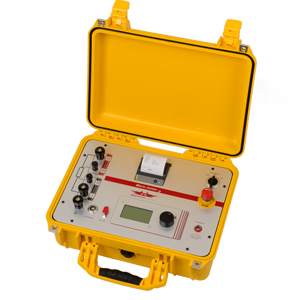

The Micro Junior 2 is one of the most lightweight systems available that comes complete with its own rugged waterproof Fieldcase.
MODEL SPECIFICATIONS
-
Size L: 410 mm (16.1”) W: 337 mm (13.3”) H: 178 mm (7”), Weight 5.9 kg (13 lbs
-
Power: Lithium-Ion battery, 16.4V / 6Ah
-
Test Current user selectable: 10, 1, 0.1, 0.01, 0.001 A DC
-
Panel Display: LCD graphic with back light
-
Front Panel Sealed, Anodized with a multi-actuation rotary knob
-
Interface: 9 Pin RS232 serial
-
Internal panel mount printer
-
Memory Storage: Internally stores up to 2 000 test results
|
|
Measuring Range
|
Accuracy
|
Resolution
|
|
10 A F/R*
|
0.00 µΩ ... 40 mΩ
|
± 0.1% Rdg ± 0.1 µΩ
|
5 Digits or 0.01 µΩ
|
|
10 A
|
0.0 µΩ ... 40 mΩ
|
± 0.1% Rdg ± 1 µΩ
|
5 Digits or 0.1 µΩ
|
|
1 A F/R*
|
0.0 µΩ ... 1 Ω
|
± 0.1% Rdg ± 1 µΩ
|
5 Digits or 0.1 µΩ
|
|
1 A
|
0.000 mΩ ... 1 Ω
|
± 0.1% Rdg ± 10 µΩ
|
5 Digits or 0.001 mΩ
|
|
0.1 A
|
0.00 mΩ ... 10 Ω
|
± 0.1% Rdg ± 0.1 mΩ
|
5 Digits or 0.01 mΩ
|
|
10 mA
|
0.0 mΩ ... 400 Ω
|
± 0.1% Rdg ± 1 mΩ
|
5 Digits or 0.1 mΩ
|
|
1 mA
|
0.0 Ω ... 40 kΩ
|
± 0.1% Rdg ± 0.1 Ω
|
5 Digits or 0.1 Ω
|
|
1 mA
|
40 kΩ ... 400 kΩ
|
± 0.1% Rdg
|
5 Digits
|
* F/R = automatic Forward / Reverse current measurements
|
Resistance Range:
|
0.00µΩ to 400kΩ
|
|
Temperature:
|
Operating -10°C to +60°C
|
|
Storage -20°C to +70°C
|
